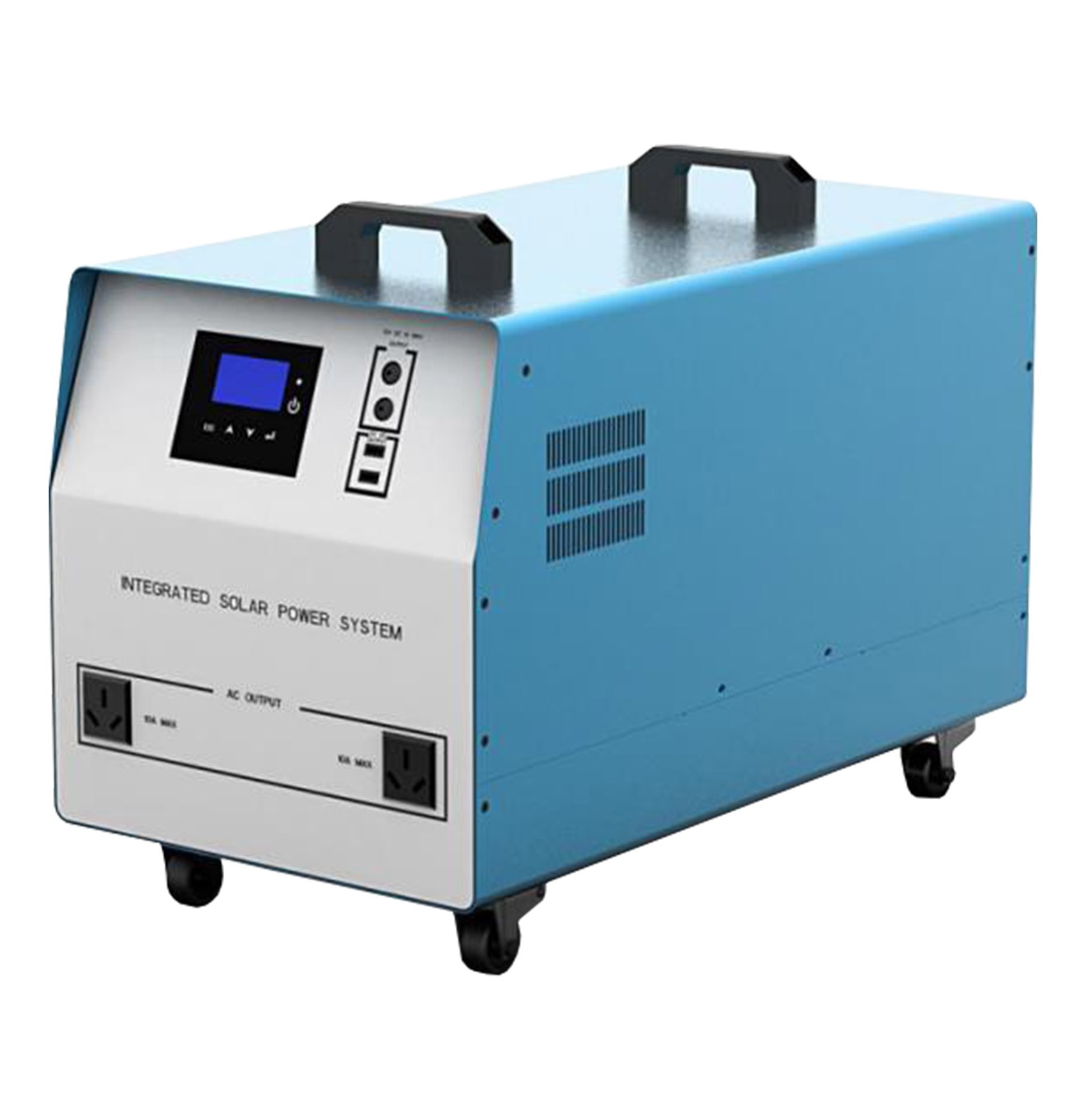

MI Series Inverter

Product Specifications

資料讀取中.......

Add Tracking

• Foreword

  Dear user, thank you very much for using the MI series photovoltaic off-grid inverter products developed and manufactured by Zhenyuan Electric Co., Ltd. We sincerely hope that this product can meet your needs, and we hope that you can make valuable suggestions on the performance and functions of the product Comments and suggestions, we will continue to improve to provide better products and solutions.

  Please read this manual carefully before using this product. Please keep this manual in a safe place for the convenience of related personnel.



  Product whole introduction



  Figure 1 Inverter working system

  I series single-phase off-grid inverter pure sine wave output, power frequency transformer isolation, strong shock resistance and excellent overload performance, suitable for air conditioning, television, radio, refrigerator, washing machine, computer, power tool, lighting, industrial equipment, telecommunications Equipment and other loads.

  Working mode

  Mode	Comment	Switching
  AC Charge priority	When there is AC input power, the utility power supplies power to the load; when there is no AC input power, the load is powered by the battery inverter	≤5ms
  Bat. priority	When the battery has power, the battery will invert to supply the load; when there is no battery or the battery is under voltage, the load will be supplied by the AC power.	≤5ms

  Table 1 I series inverter working mode table



  Appearance description

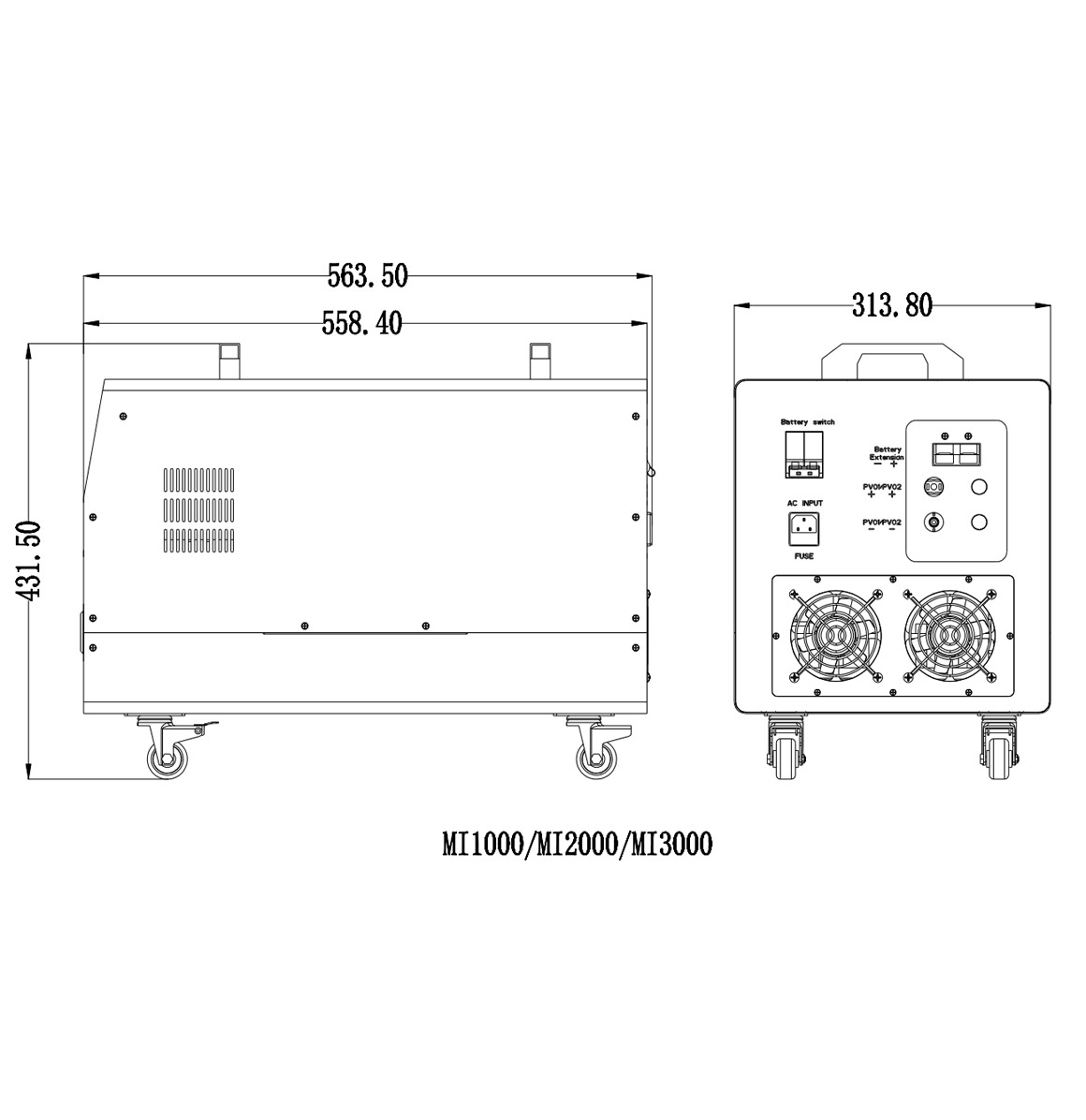

  The appearance of MI1000/MI2000/MI3000 inverter is shown in Figure 7. The surface of the machine mainly includes touch screen, indicator light, input/output interface, etc.



  Figure 7 MI1000/MI2000/MI3000 appearance drawings



  Position	description	Remark
  1	12V/5VDC output	12V maximum continuous output 1A current; 5V maximum output 2A current
  2	LCD operation interface
  3	BX-801 AC socket	Maximum current 10A
  4	Battery input switch	Make sure the switch is off during installation
  5	AC Input switch	National standard product interface; 15A fuse
  6	Battery input terminal	120A Anderson Terminal
  7	MC4 connect terminal	Photovoltaic connection terminals, the current on a single group of terminals cannot exceed 15A

  Table 2 MI1000/MI2000/MI3000 input and output interface list

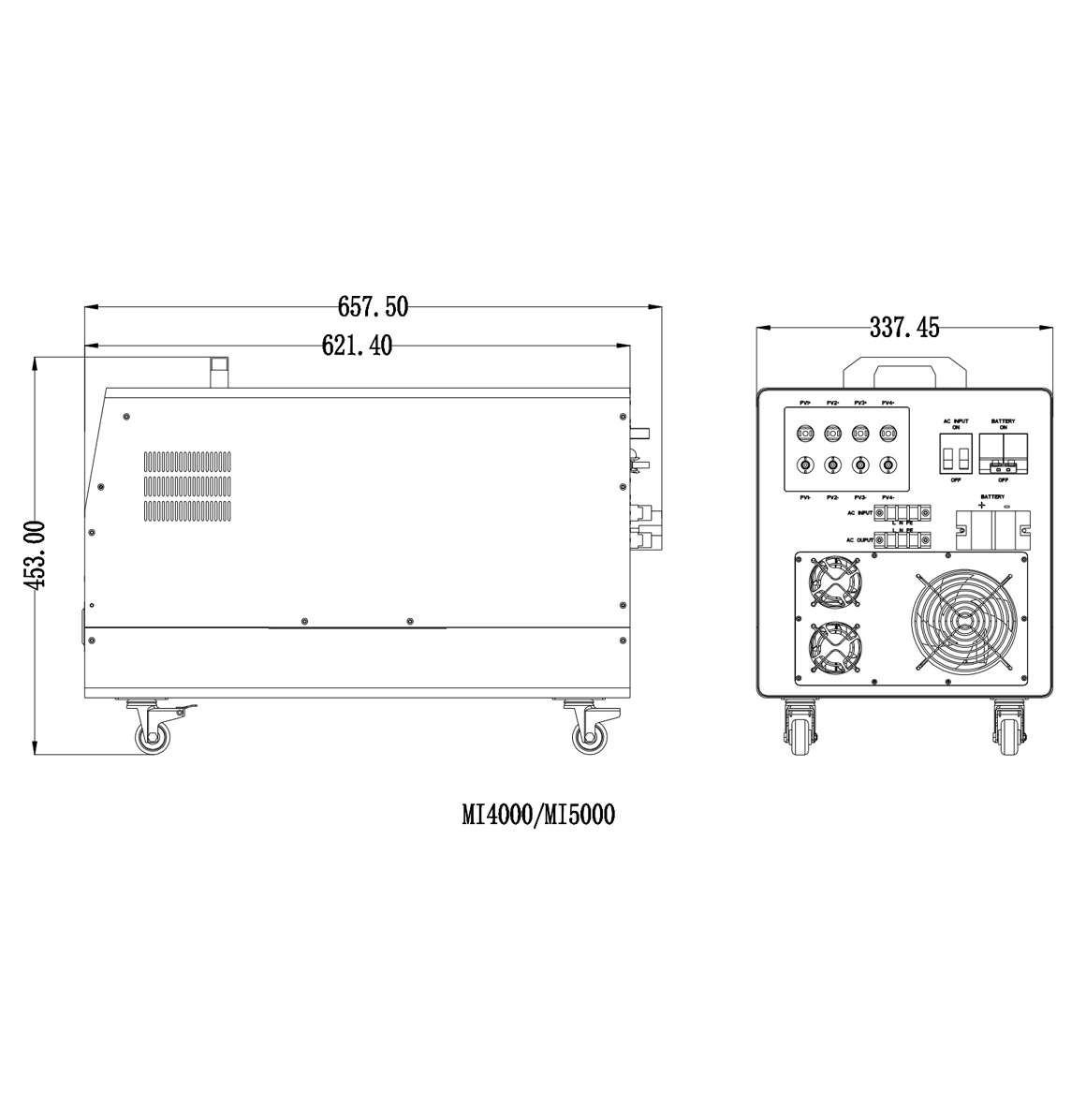

  The appearance of MI4000/MI5000 inverter is shown in Figure 8. The surface of the machine mainly includes touch screen, indicator light, input/output interface, etc.



  Figure 8 MI4000/MI5000 appearance drawings



  Position	description	Remark
  1	12V/5VDC output	12V maximum continuous output 1A current; 5V maximum output 2A current
  2	LCD operation interface
  3	BX-801 AC socket	Max. Current 10A
  4	AC Input switch	Make sure the switch is off during installation
  5	Battery input switch	Make sure the switch is off during installation
  6	ACInput connection terminal	L is the live line, N is the neutral line, and PE is the ground line. Both are M4 connectors
  7	ACOutput connection terminal	L is the live line, N is the neutral line, and PE is the ground line. Both are M4 connectors
  8	Battery input terminal	Both are M8 connectors
  9	MC4Connection terminal	PV connection terminals, the current on a single group of terminals cannot exceed 15A

  Table 3 MI4000/MI5000 input and output interface list
