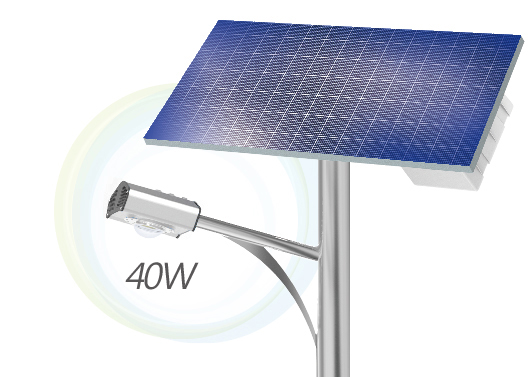

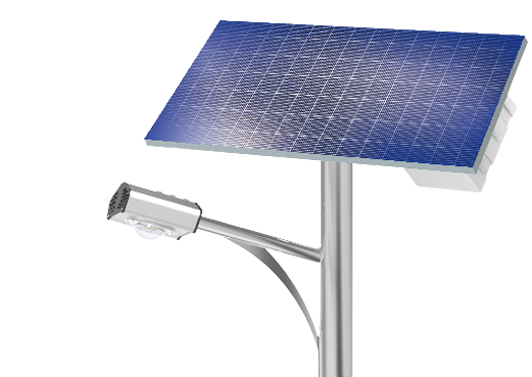

LED Solar Street Light GA-D 40W

Product Specifications

資料讀取中.......

Add Tracking

• Save Energy ! No Wires Needed Easy To Mount Anywhere Great For any outdoor application such as - Garage Light, Garden, Backyard, Pathway Even For RV when going camping, Fishing etc. illuminate any area where you need Brightness to see at night and where a conventional lights will be harder and more expensive to install, With a few of these lights you can illuminate your entire backyard, work area etc.

  ►Single Solar Panel module.

  ►Best Water Proof Design: IP67 and above.

  ►Smart Energy Management - Auto Setting.

  ►Aluminum Alloy air exhaust Battery control panel, Sealed colloidal Battery.

  ►Unique heat dissipation management, LED lighting reliability reaches more

      than 50,000 hours.

  ►Entire Housing / Structure are recyclable.

  ►Products passed Environment Reliability Test, and function perfectly in heavy

      Dust, high temperature environment.

  FOR 2 DAYS ILLUMINATE ( 10HRS PER DAY ) OR MORE.

  Model No.	SL-20W             l     SL-40W            l     SL-60W
  Light Source	COB LED Module
  Connect Type	Lighting Pole (Ø47-60mm)
  Consumption	0-20W±10%     l  0-40W±10%     l  0-60W±10%
  Luminaire Efficacy	120 lm/w±5%
  Color Temperature	3000K±400K  /  5500K±500K
  Beam Angle	140°x 70° Symmetric Lens
  CRI	>80Ra
  Ambient Temperature	–20°C~50°C
  Pole Height (Recommended)	3-5m                 l      5-6m               l       6-8m



  PV Module
  Panel         18V (100W)     l     36V (100Wx2)     l     36V (150Wx2)



  Lithium-polymerization Battery & Controller
  MPPT(Maximum Power Point Tracking) Charge / Discharge Controller With 4-period dimmable control 、 ON / OFF voltage setup & Power-saving Function. Battery Capacity:     12V/40Ah     l     24V/40Ah     l      24V/50Ah
