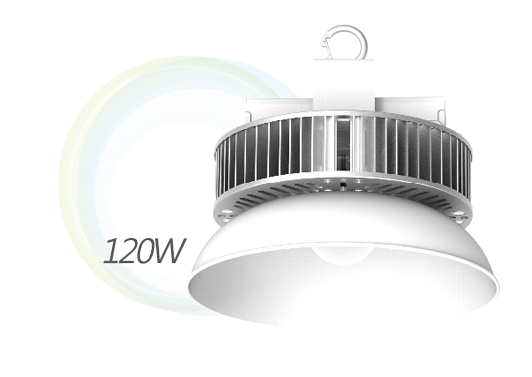

LED Flood Light MA 120W

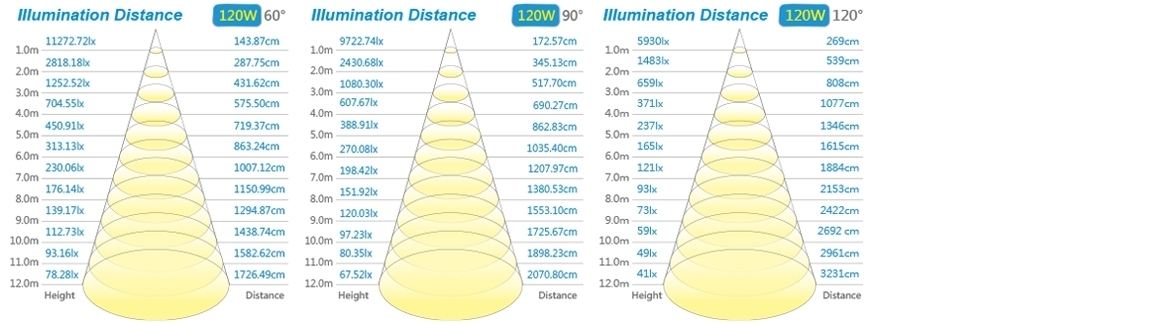

Product Specifications Illuminance

資料讀取中.......

Add Tracking

• JMLED's high-bay lighting fixtures are designed for applications of 20 feet (6 meters) or more. A wide range of indoor lighting fixtures provide specific light patterns for your high bay lighting applications, including maintenance lighting, warehouse lighting, recreation center lighting, hangar lighting and storage lighting. JMLED's indoor lighting fixtures provide industrial and commercial lighting to help improve safety and energy efficiency while enhancing productivity.

  ▼ High and low bay lighting.

  ▼ Racked aisles or open floor plan.

  ▼ Warehouse, cold storage, industrial, gymnasiums, sports arenas, retail,

      high-ceiling spaces.

  ▼ Designed to meet recommended luminance and illuminance requirements

      for high & low bay lighting applications in industrial and commercial buildings.


  Light Source	LED COB Integrated
  Dimension	M10 Hanging-mounted Ø304 x 276mm(H) U-Bar Wall-mounted      Ø304 x 295mm(H)

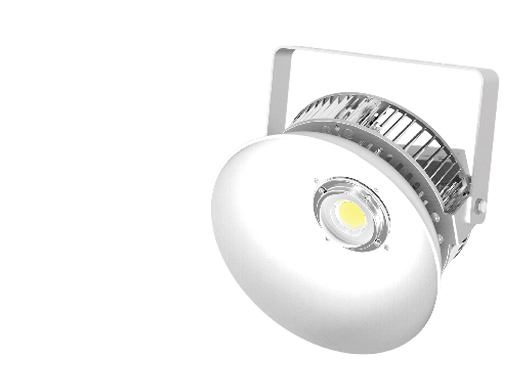

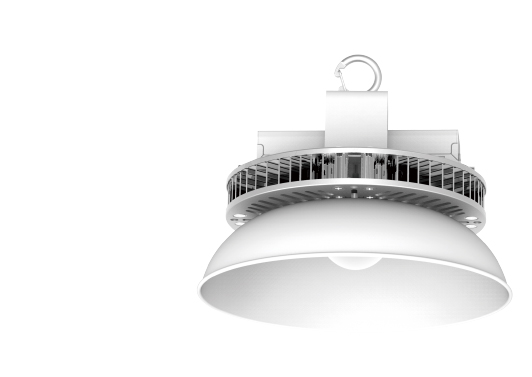

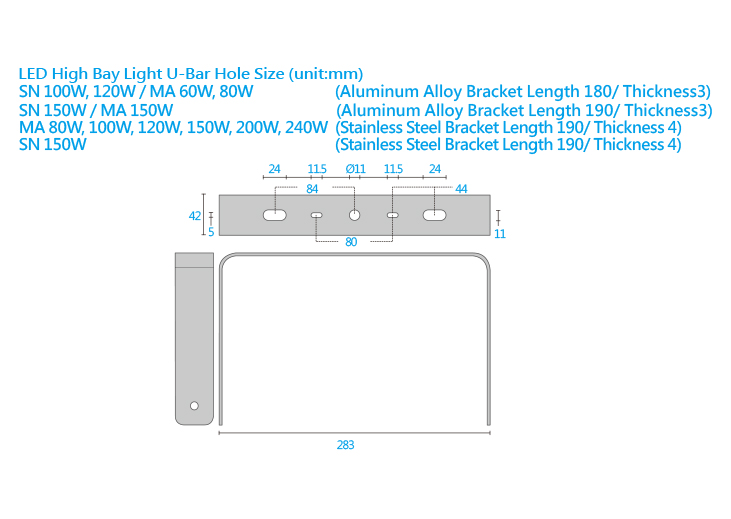

  Connect Type	M10 Hanging-mounted or U-Bar Wall-mounted
  Driver	AC100~240V, 50/60Hz
  Power	120W±10%
  Luminous Efficiency	120 lm/w
  Lighting Effect	14400 lm
  Color Temperature	3000K±400K/ 5500K±500K
  Beam Angle	60°/ 90°/ 120° Symmetric Lens
  P. F.	>0.95
  CRI	>80Ra
  Ambient	-20℃ ~ 50℃
  Ingress Protection	IP65
  Material / Weight	Anodized Aluminum, Hanging-mounted 4 Kg,                                    Wall-mounted 4.4 Kg
