LED Flood Light SN 150W

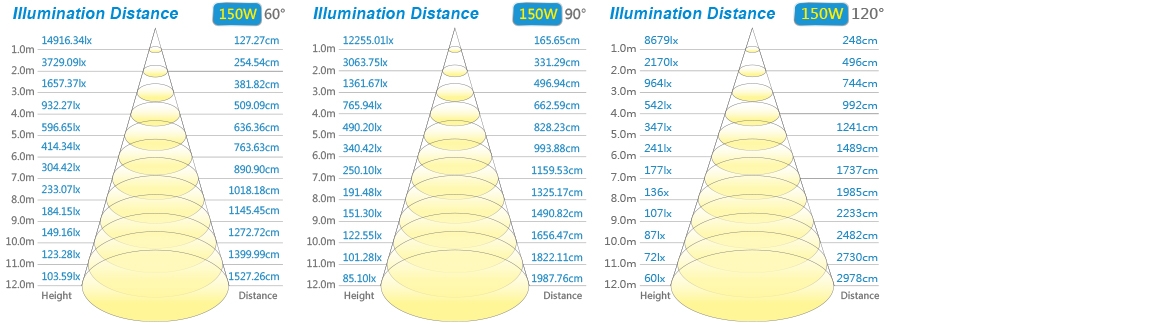

Product Specifications Illuminance

資料讀取中.......

Add Tracking

• JMLED Lighting Superior light quality and lower energy and maintenance costs. SN Series High-bay light offers customers all the benefits of LED lighting – fresh light quality, longer service lifetime, reduced energy consumption and less maintenance – from a trusted manufacturer. At the same time, it delivers clear benefits for the installer too. The luminaire can be installed on the existing grid. Electrical connection is straightforward: there is no need to open the luminaire for installation or servicing. And being smaller and lighter than conventional luminaires, it is very easy to handle.

  ◆High efficacy: 115 lumens per watt.

  ◆High quality optical Lens ensure good uniformity.

  ◆Lifetime of 50,000 hours quality assurance.

  ◆Suitable for pole and hook mounting.

  Light Source	LED COB Integrated
  Dimension	Hanging-mounted    Ø393x 383mm(H) Wall-mounted           Ø393x 261mm(H)

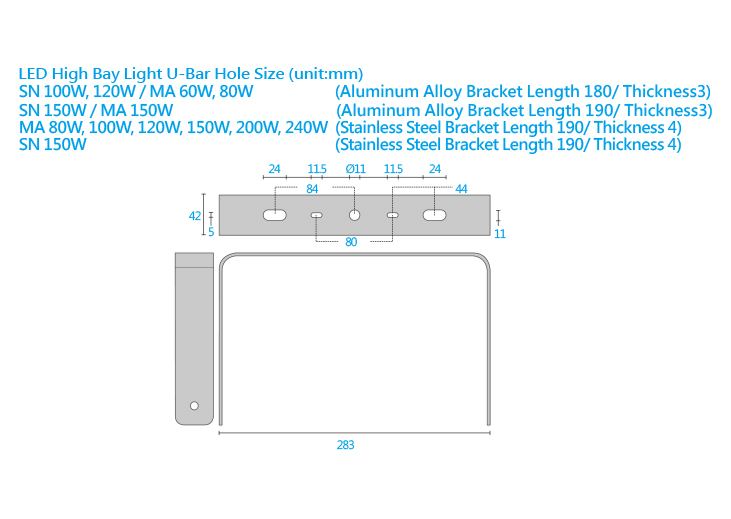

  Connect Type	M8 Hanging-mounted or U-Bar Wall-mounted
  Driver	AC100~240V, 50/60Hz
  Power	150W±10%
  Luminous Efficiency	140 lm/w±5%
  Lighting Effect	21000 lm±5%
  Color Temperature	3000K±400K/ 4500K±500K/ 5500K±500K
  Beam Angle	60°/ 90°/ 120° Symmetric Lens
  P. F.	>0.95
  CRI	>80Ra
  Ambient	-20℃ ~ 50℃
  Ingress Protection	IP65
  Material / Weight	Anodized Aluminum, Hanging-mounted 6.8Kg,                                       Wall-mounted 7.2Kg
