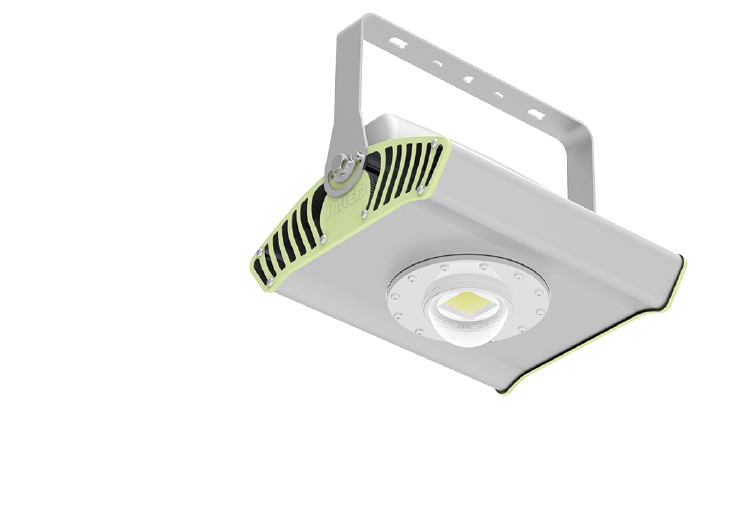

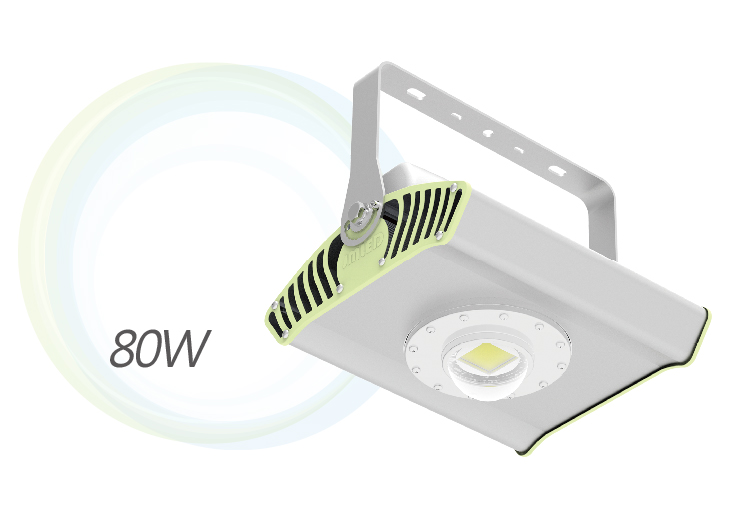

LED Flood Light GA-B 80W

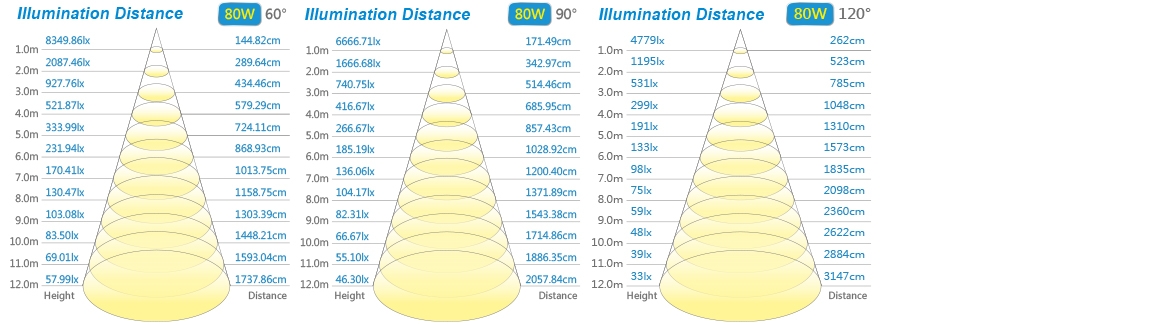

Product Specifications Illuminance

資料讀取中.......

Add Tracking

• JMLED achieved a breakthrough in high-bay lighting, offering a huge reduction in power consumption, a long service life and an innovative design. The unique flat design means you have the flexibility to install by hook. There are three beam shapes to choose from and the high-rack optics are engineered to illuminate vertical planes with exceptionally high accuracy.

  ￭ Extremely long lifetime of up to 50,000 hours.

  ￭ Iconic design for architectural appeal.

  ￭ low glare rating and color rendering of ≥ 80Ra

  ￭ Suitable for new builds or point-for-point replacement lights.

  ￭ Wide variety of optics, including asymmetrical for side-lit applications (ideal for

     indoor sports halls and industry) and very narrow beams for industrial halls

     up to 40 meters.


  Light Source	LED COB Integrated

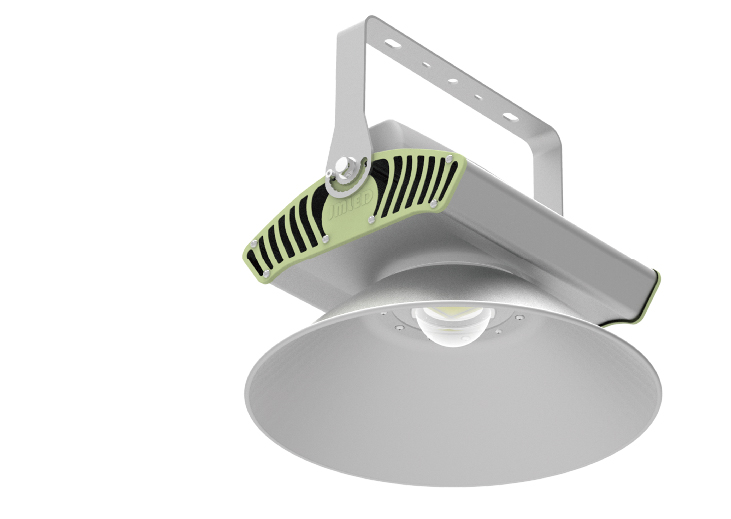

  Dimension	Standard      278(L)x 320(W)x 293mm(H) Lampshade  Ø393(L)x 320(W)x 359mm(H))

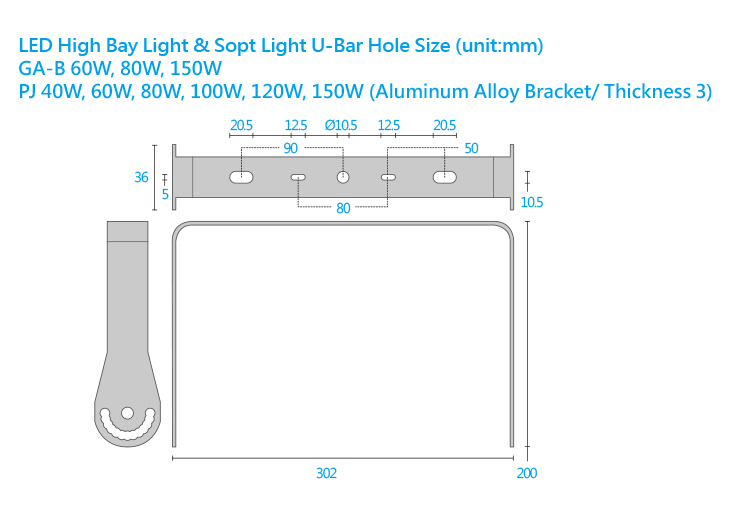

  Connect Type	U-Bar Wall-mounted
  Driver	AC100~240V, 50/60Hz
  Power	80W±10%
  Luminous Efficiency	140 lm/w±5%
  Lighting Effect	11200 lm±5%
  Color Temperature	3000K±400K/ 5500K±500K
  Beam Angle	60°/ 90°/ 120° Symmetric Lens
  P. F.	>0.95
  CRI	>80Ra
  Ambient	-20℃ ~ 50℃
  Ingress Protection	IP65
  Material / Weight	Anodized Aluminum, Standard 4.5Kg,                                     Lampshade 4.9Kg
