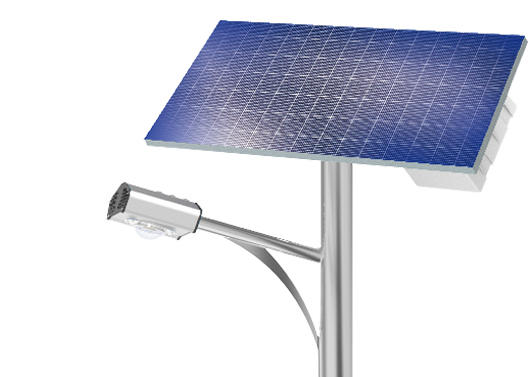

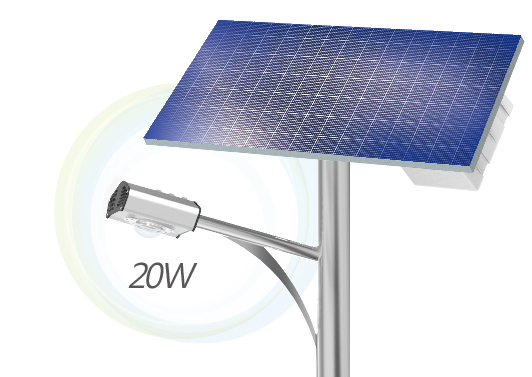

LED Solar Street Light GA-D 20W

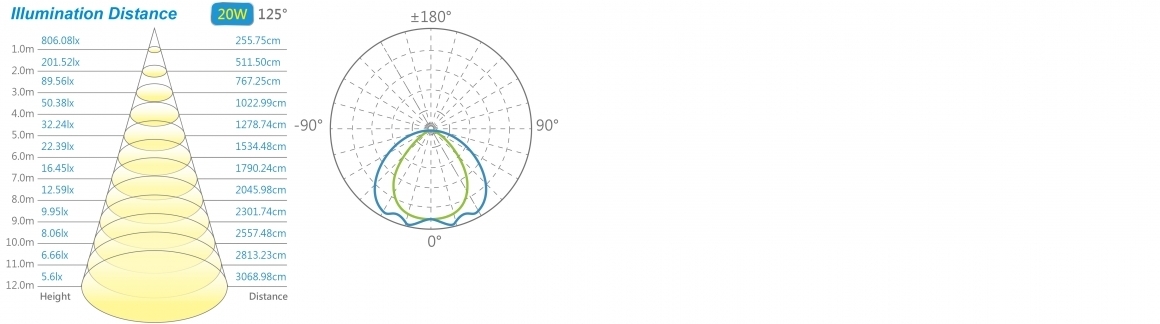

Product Specifications Illuminance
資料讀取中.......
Add Tracking
  • Save Energy ! No Wires Needed Easy To Mount Anywhere Great For any outdoor application such as - Garage Light, Garden, Backyard, Pathway Even For RV when going camping, Fishing etc. illuminate any area where you need Brightness to see at night and where a conventional lights will be harder and more expensive to install, With a few of these lights you can illuminate your entire backyard, work area etc.

    ►Single Solar Panel module.

    ►Best Water Proof Design: IP67 and above.

    ►Smart Energy Management - Auto Setting.

    ►Aluminum Alloy air exhaust Battery control panel, Sealed colloidal Battery.

    ►Unique heat dissipation management, LED lighting reliability reaches more

        than 50,000 hours.

    ►Entire Housing / Structure are recyclable.

    ►Products passed Environment Reliability Test, and function perfectly in heavy

        Dust, high temperature environment.

    FOR 2 DAYS ILLUMINATE ( 10HRS PER DAY ) OR MORE.

    Model No. SL-20W             l     SL-40W            l     SL-60W
    Light Source COB LED Module
    Connect Type Lighting Pole (Ø47-60mm)
    Consumption 0-20W±10%     l  0-40W±10%     l  0-60W±10%
    Luminaire Efficacy 120 lm/w±5%
    Color Temperature 3000K±400K  /  5500K±500K
    Beam Angle 140°x 70° Symmetric Lens
    CRI >80Ra
    Ambient Temperature –20°C~50°C
    Pole Height (Recommended) 3-5m                 l      5-6m               l       6-8m

    PV Module
    Panel         18V (100W)     l     36V (100Wx2)     l     36V (150Wx2)

    Lithium-polymerization Battery & Controller
    MPPT(Maximum Power Point Tracking) Charge / Discharge Controller
    With 4-period dimmable control 、 ON / OFF voltage setup &
    Power-saving Function.

    Battery Capacity:     12V/40Ah     l     24V/40Ah     l      24V/50Ah
