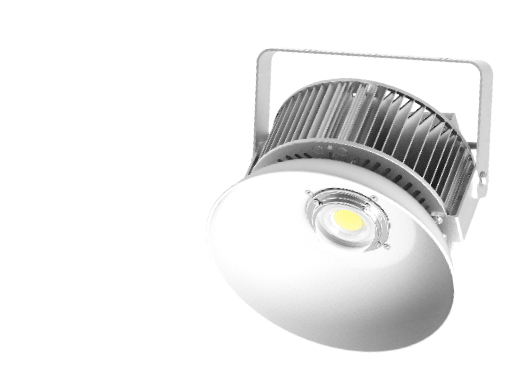

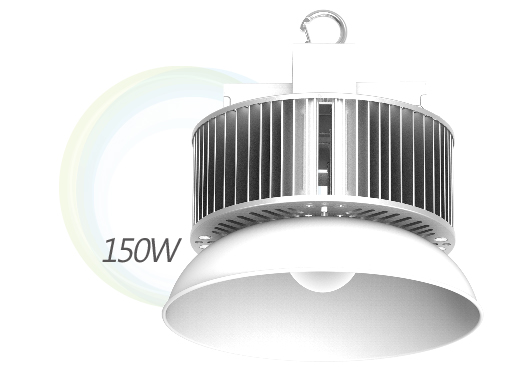

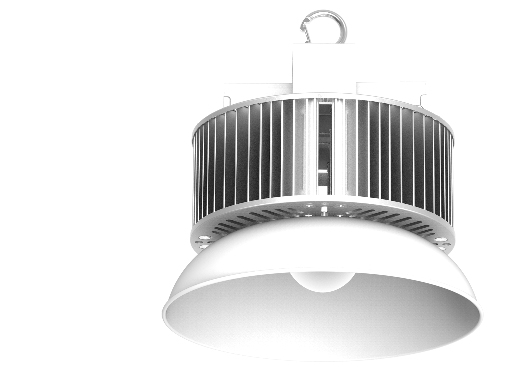

LED Flood Light MA 150W

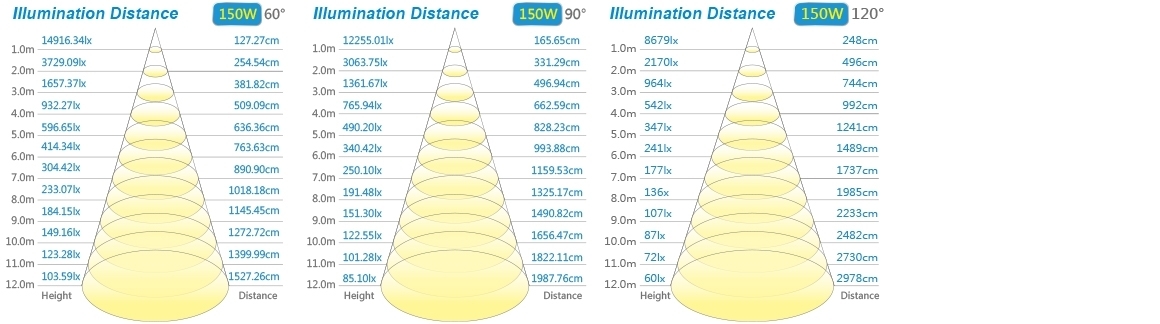

Product Specifications Illuminance
資料讀取中.......
Add Tracking
  • JMLED's high-bay lighting fixtures are designed for applications of 20 feet (6 meters) or more. A wide range of indoor lighting fixtures provide specific light patterns for your high bay lighting applications, including maintenance lighting, warehouse lighting, recreation center lighting, hangar lighting and storage lighting. JMLED's indoor lighting fixtures provide industrial and commercial lighting to help improve safety and energy efficiency while enhancing productivity.

    ▼ High and low bay lighting.

    ▼ Racked aisles or open floor plan.

    ▼ Warehouse, cold storage, industrial, gymnasiums, sports arenas, retail,

        high-ceiling spaces.

    ▼ Designed to meet recommended luminance and illuminance requirements

        for high & low bay lighting applications in industrial and commercial buildings.


    Light Source LED COB Integrated
    Dimension M10 Hanging-mounted Ø304 x 310mm(H),
    U-Bar Wall-mounted      Ø304 x 277mm(H)

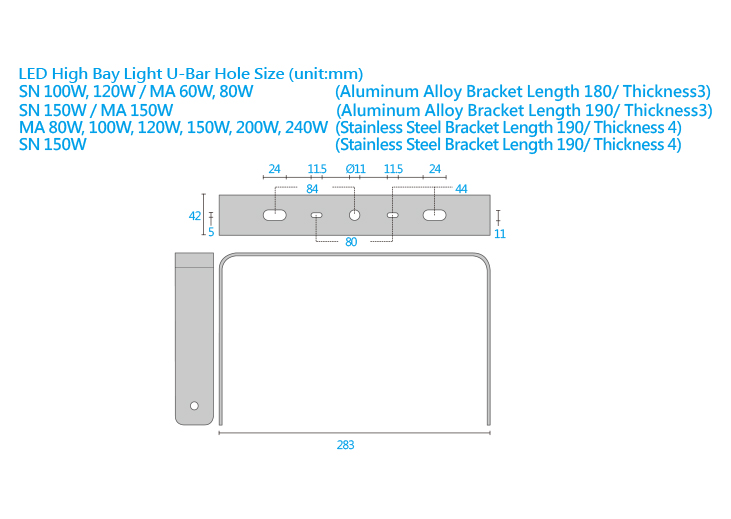

    Connect Type M10 Hanging-mounted or U-Bar Wall-mounted
    Driver AC100~240V, 50/60Hz
    Power 150W±10%
    Luminous Efficiency >100 lm/w
    Lighting Effect >15000 lm
    Color Temperature 3000K±400K/ 5500K±500K
    Beam Angle 60°/ 90°/ 120° Symmetric Lens
    P. F.  >0.95
    CRI >70Ra
    Ambient -20℃ ~ 50℃
    Ingress Protection IP65
    Material / Weight Anodized Aluminum, Hanging-mounted 6.3Kg,
                                         Wall-mounted 6.8Kg
