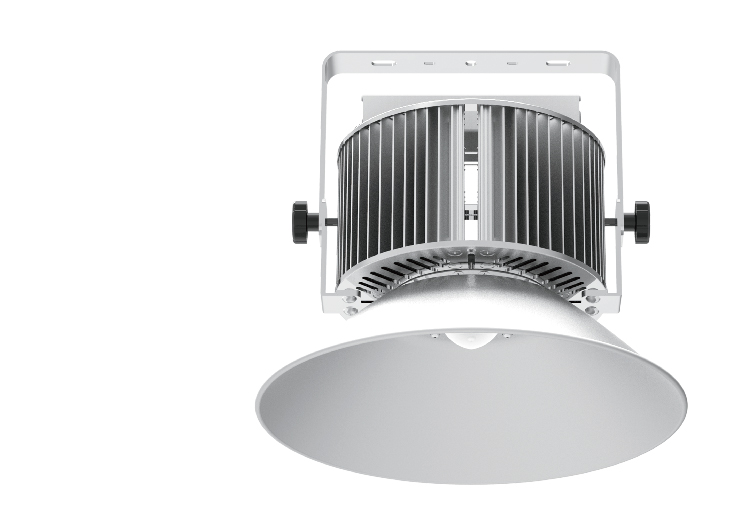

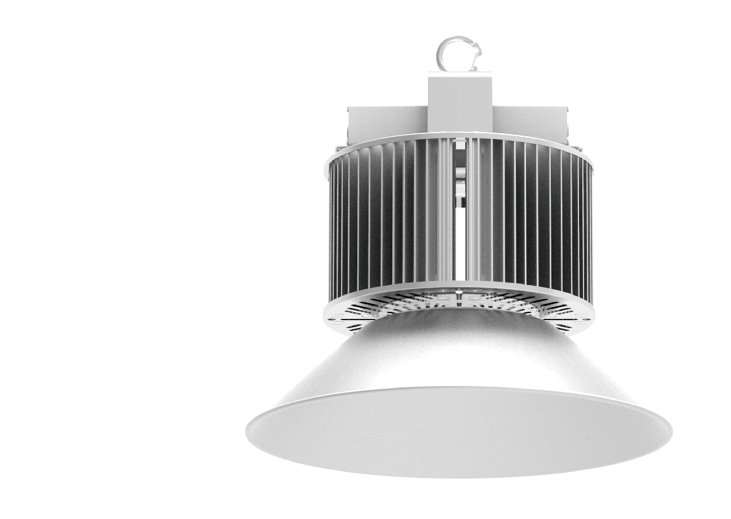

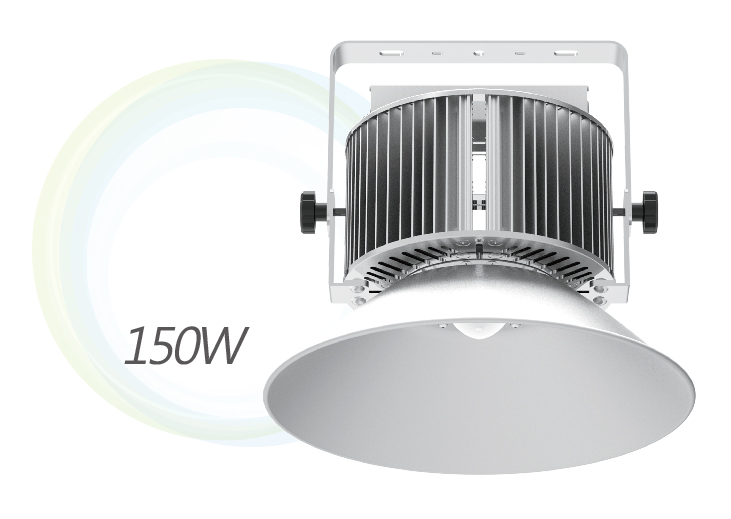

LED Flood Light SN 150W

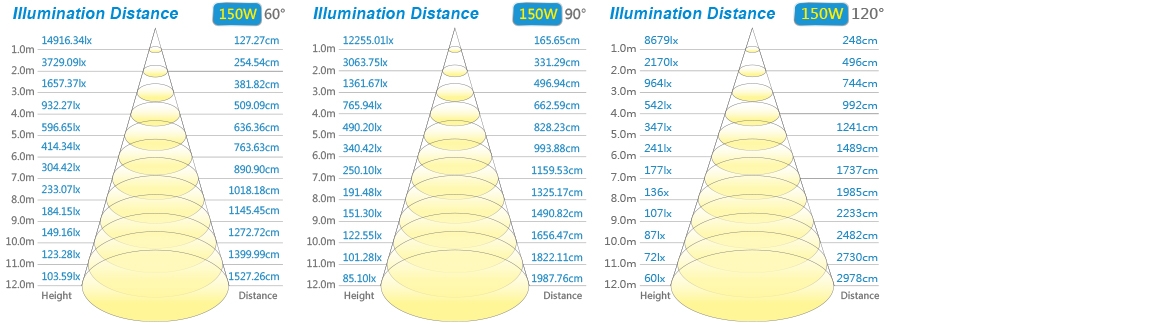

Product Specifications Illuminance
資料讀取中.......
Add Tracking
  • JMLED Lighting Superior light quality and lower energy and maintenance costs. SN Series High-bay light offers customers all the benefits of LED lighting – fresh light quality, longer service lifetime, reduced energy consumption and less maintenance – from a trusted manufacturer. At the same time, it delivers clear benefits for the installer too. The luminaire can be installed on the existing grid. Electrical connection is straightforward: there is no need to open the luminaire for installation or servicing. And being smaller and lighter than conventional luminaires, it is very easy to handle.

    ◆High efficacy: 115 lumens per watt.

    ◆High quality optical Lens ensure good uniformity.

    ◆Lifetime of 50,000 hours quality assurance.

    ◆Suitable for pole and hook mounting.

    Light Source LED COB Integrated
    Dimension Hanging-mounted    Ø393x 383mm(H)
    Wall-mounted           Ø393x 261mm(H)

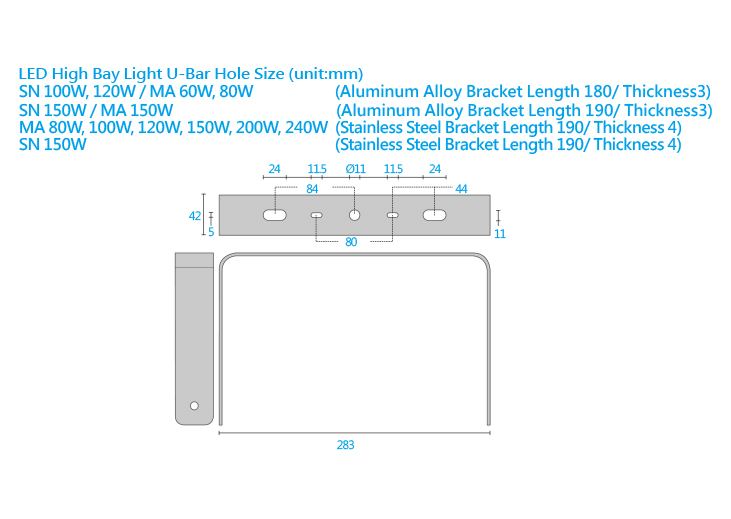

    Connect Type M8 Hanging-mounted or U-Bar Wall-mounted
    Driver AC100~240V, 50/60Hz
    Power 150W±10%
    Luminous Efficiency 140 lm/w±5%
    Lighting Effect 21000 lm±5%
    Color Temperature 3000K±400K/ 4500K±500K/ 5500K±500K
    Beam Angle 60°/ 90°/ 120° Symmetric Lens
    P. F. >0.95
    CRI >80Ra
    Ambient -20℃ ~ 50℃
    Ingress Protection IP65
    Material / Weight Anodized Aluminum, Hanging-mounted 6.8Kg,
                                         Wall-mounted 7.2Kg
