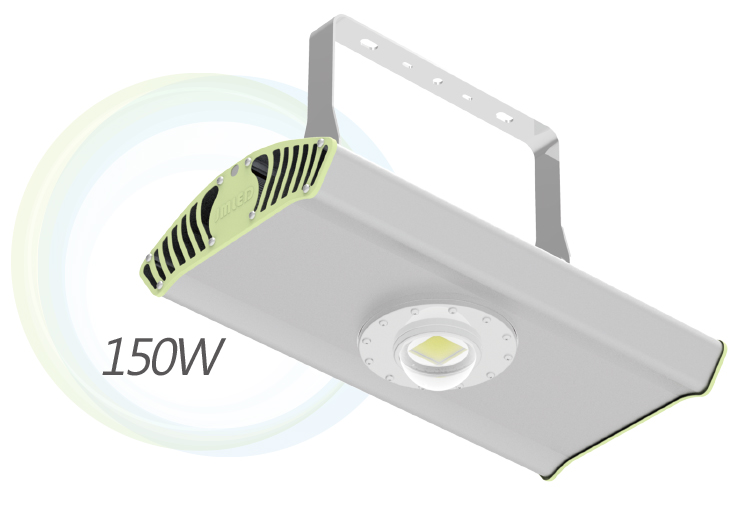

LED Flood Light GA-B 150W

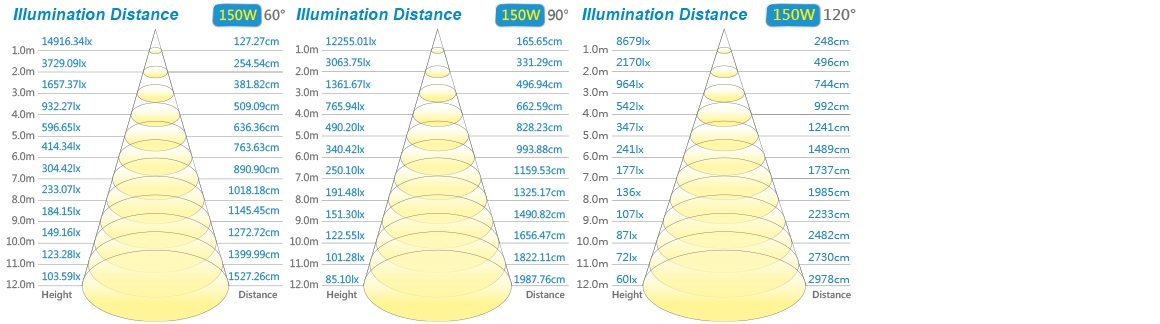

Product Specifications Illuminance
資料讀取中.......
Add Tracking
  • JMLED achieved a breakthrough in high-bay lighting, offering a huge reduction in power consumption, a long service life and an innovative design. The unique flat design means you have the flexibility to install by hook. There are three beam shapes to choose from and the high-rack optics are engineered to illuminate vertical planes with exceptionally high accuracy.

    ■ Extremely long lifetime of up to 50,000 hours.

    ■ Iconic design for architectural appeal.

    ■ low glare rating and color rendering of ≥ 80Ra

    ■ Suitable for new builds or point-for-point replacement lights.

    ■ Wide variety of optics, including asymmetrical for side-lit applications (ideal for

       indoor sports halls and industry) and very narrow beams for industrial halls

       up to 40 meters.


    Light Source LED COB Integrated

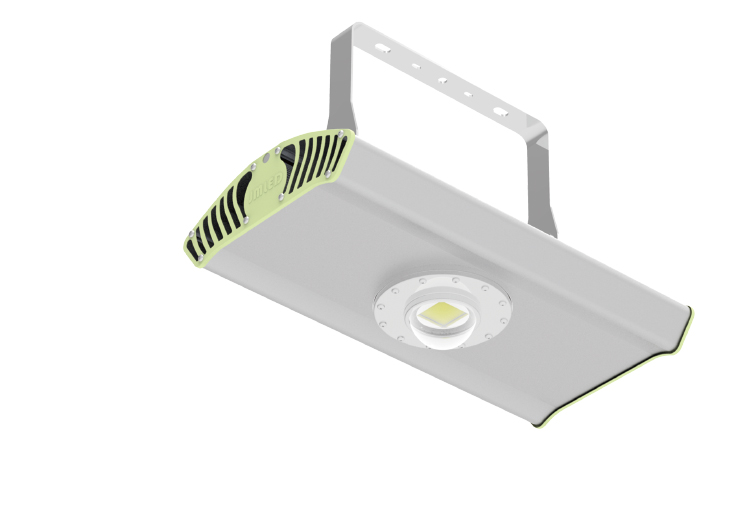

    Dimension Standard      278(L)x 507(W)x 357mm(H)

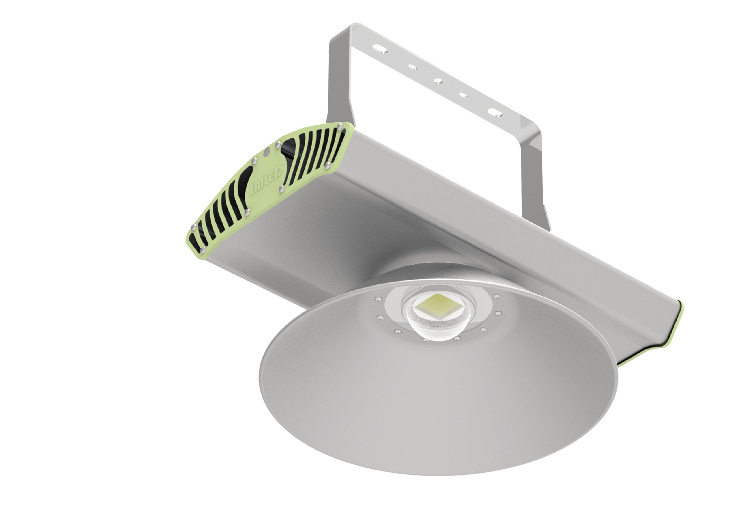

    Lampshade  Ø393(L)x 507(W)x 419mm(H))

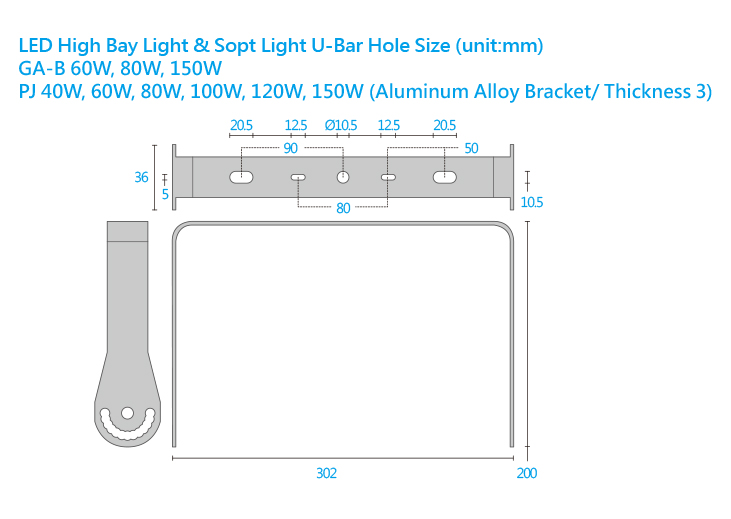

    Connect Type U-Bar Wall-mounted
    Driver AC100~240V, 50/60Hz
    Power 150W±10%
    Luminous Efficiency 140 lm/w±5%
    Lighting Effect 21000 lm±5%
    Color Temperature 3000K±400K/ 5500K±500K
    Beam Angle 60°/ 90°/ 120° Symmetric Lens
    P. F. >0.95
    CRI >80Ra
    Ambient -20℃ ~ 50℃
    Ingress Protection IP65
    Material / Weight Anodized Aluminum, Standard 7.3Kg,
                                       Lampshade 7.7Kg
